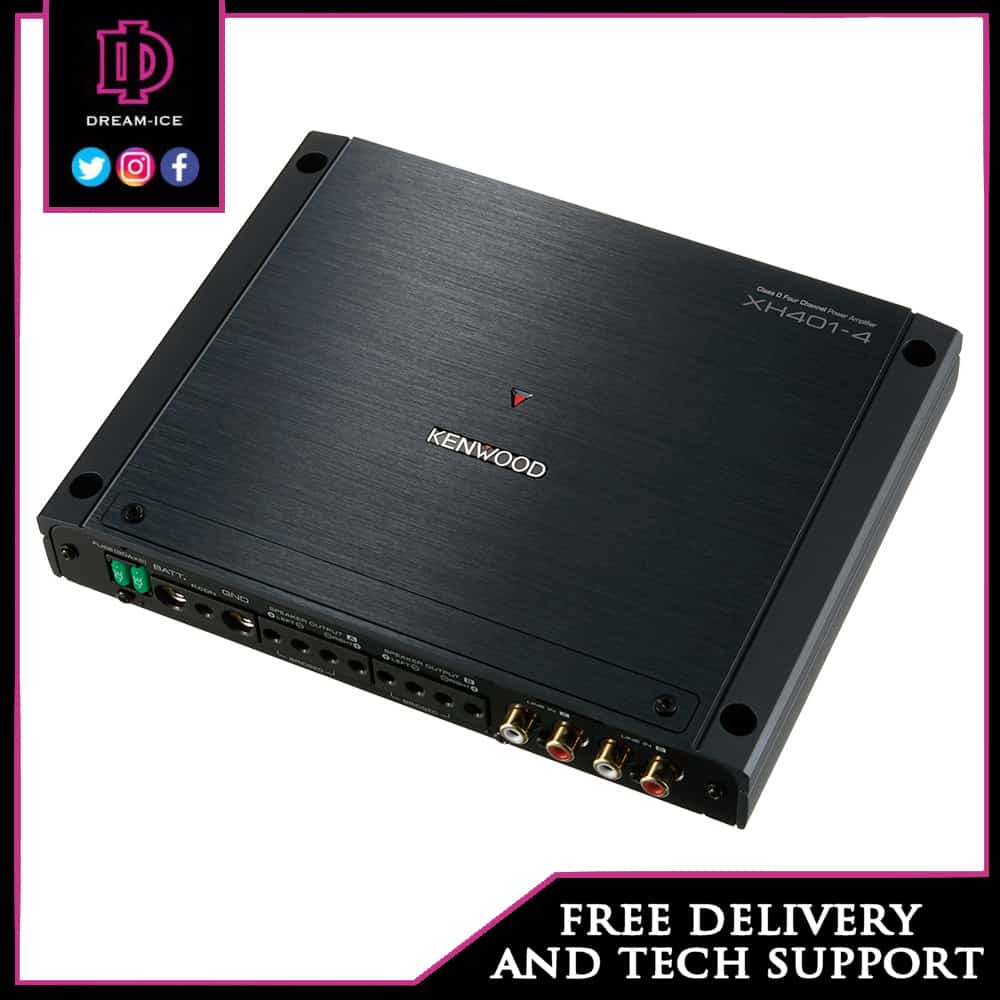

KENWOOD XH401-4

£329.95

Hi Resolution 4Ch Amp
800w Max D Class.
•Super Slimline Design
•Variable High and Low Pass Filters

•Speaker Level Input.

Description

Key Features
Class D 4-Channel Power Amplifier
CEA-2006 compliant
Hi-Res Audio compliant
75W x 4 RMS power output
Frequency Response 20Hz – 50kHz
Variable High-Pass Filter
Variable Low-Pass Filter
Speaker level input
Signal sensing turn-on
Wired remote included for B-channel
Amplifier Features
Class D Amplifier
Load Capability 2Ω Stable
Rated power output (4Ω) 75W x 4 (4Ω)
Rated power output 75W x 2 + 200W x 1 (4Ω)
Bridged power output (4Ω) 200W x 2
CEA-2006 Compliant
Low-pass Filter
High-pass Fliter
Switched Mode Power supply
Power Indicator Multifunctional
Signal Sensing Turn-on
Protection function
Line in 4 RCA / Speaker level
Input Selector A/AB
Speaker level input via line-in (RCA) A-ch & B-ch
Single Side Terminals
Chassis Aluminum Die-cast
Chassis Aluminum Die-cast
Amplifier-Specifications
Rated power output (4Ω, 14,4V) 75W x 4 (20Hz ~ 20000Hz, 1%THD)
Rated power output (2Ω, 14,4V) 100W x 4 (1000Hz, 1%THD)
Rated power output (4Ω, 14,4V) 200W x 2 (1000Hz, 1%THD)
Rated power output (CEA-2006) 75Watts RMS x 4 at 4 ohms and 1% THD
Low-pass Filter 50~200Hz (-12dB/oct)
High-pass Fliter 50~200Hz & 2,5~10kHz (-12dB/oct)
RCA Input Sensitivity 0.2 ~ 5V
Speaker Level Input Sensitivity 4 ~ 12V
Signal to Noise Ratio 100dB
Signal to noise ratio (CEA-2006) 76dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -3dB) 20Hz ~ 50000Hz
Frequency response (+0dB, -1dB) 20Hz ~ 40000Hz
Operating voltage 14.4V (11V ~ 16V allowable)
Maximum current consumption 37A
Dimensions (WxHxD) 220 x 35 x 169(mm),
Weight 1.5kg
