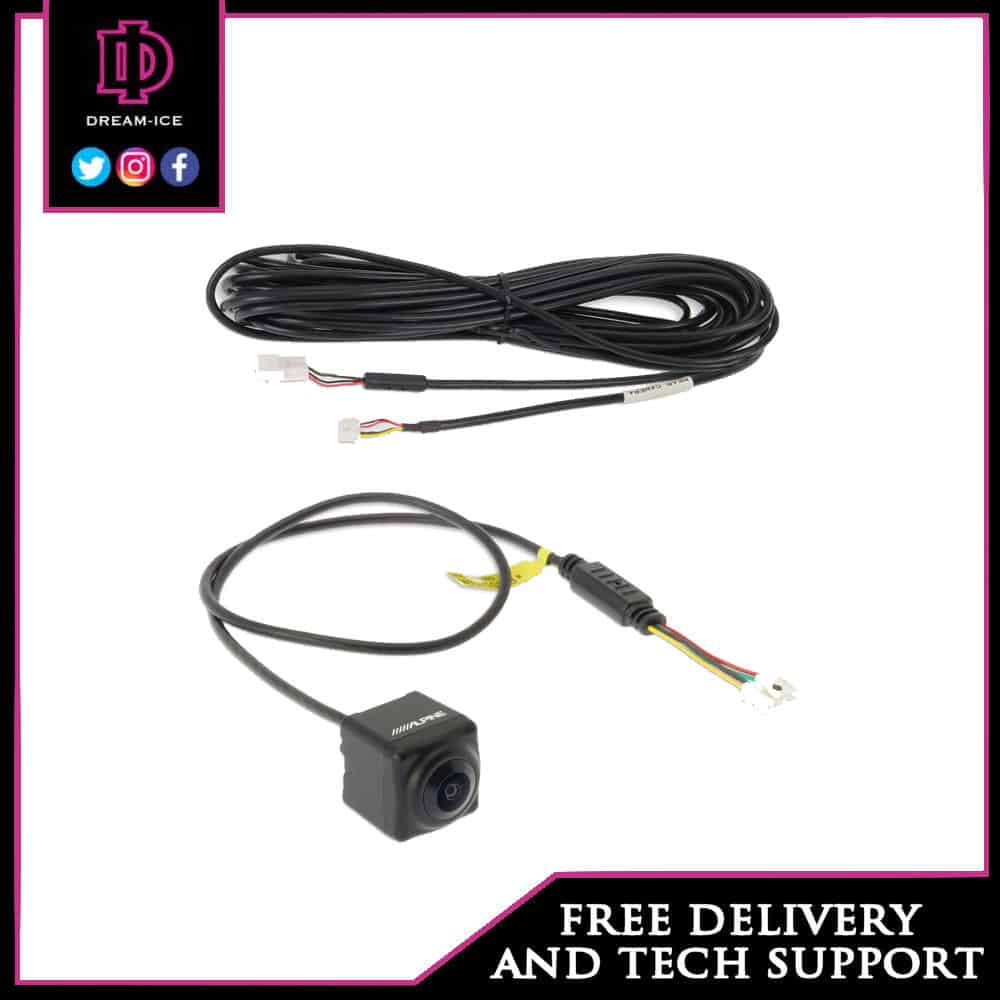

ALPINE HCE C2100RD Rear Camera

Sale!

£289.95 £246.95

ALPINE HCE C2100RD Rear Camera

Rear Camera Colour 180 degree ultra wide lense. Multiview options.

  • High Dynamic Range (HDR) Rearview Image
  • Video Signal (NTSC) Output
  • Multi View Angle Selection: Panorama View [Panorama], Ground View [Top], Corner View [Corner]
  • Normal Image Output
  • Colour CMOS Image Sensor
  • Automatic Exposure Adjustment
  • Automatic White Balance Adjustment
  • Internal Synchronization

Description

Dimensions

  • Camera: 23.6 x 23.6 x 26.1mm (excluding projection on the rear)
  • Camera Cable Length: 1m
  • Camera Extension Cable Length: 3m

General

  • Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
  • Ground Type: Negative Ground
  • Max. Power Consumption: 1.2W (6.0V)

Camera

  • Output Image: Normal image, CVBS (NTSC Video signal), for 16:9 wide-screen
  • Image Output Impedance: 75 Ohms (1Vp-p)
  • Image Sensor: 1/4″ Type Color CMOS Image Sensor, Aspect Ratio 16:9
  • Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 1.2 Mega pixels
  • Lens: Focal Length: f=1.27mm
  • Lens: Brightness: F=1:1.8
  • Angle of Field: Horizontal = 180° , Vertical = 70°
  • Angle of Field: Horizontal = 180° , Vertical = 125°
  • S/N Ratio: 41 dB or more
  • Operating Temperature: -30°C – +70°C
  • Resolution (Horizontal. Center Area): 330 TV Lines
  • Operating Temperature: -30°C – +70°C
  • Illumination Range: Approximatly 1.5Lx to 100kLx
  • Weight: 41g (including cable but not including bracket and screw)
